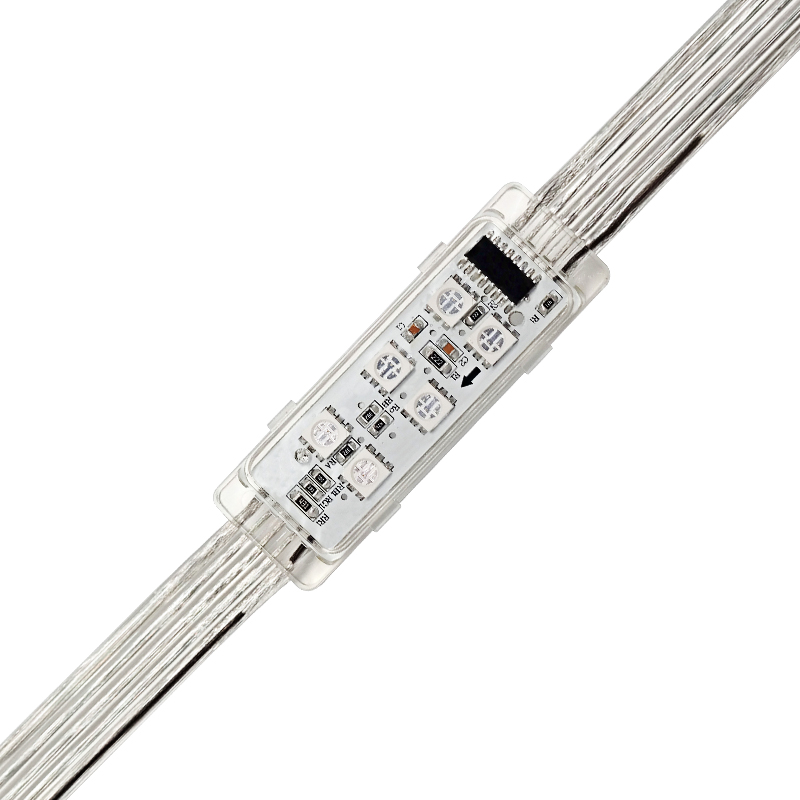

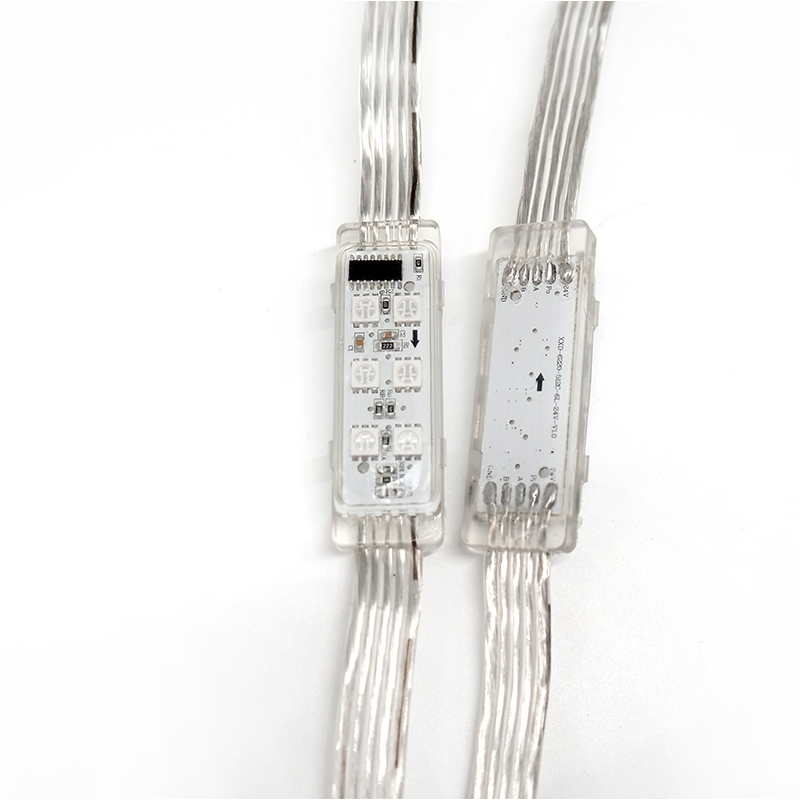

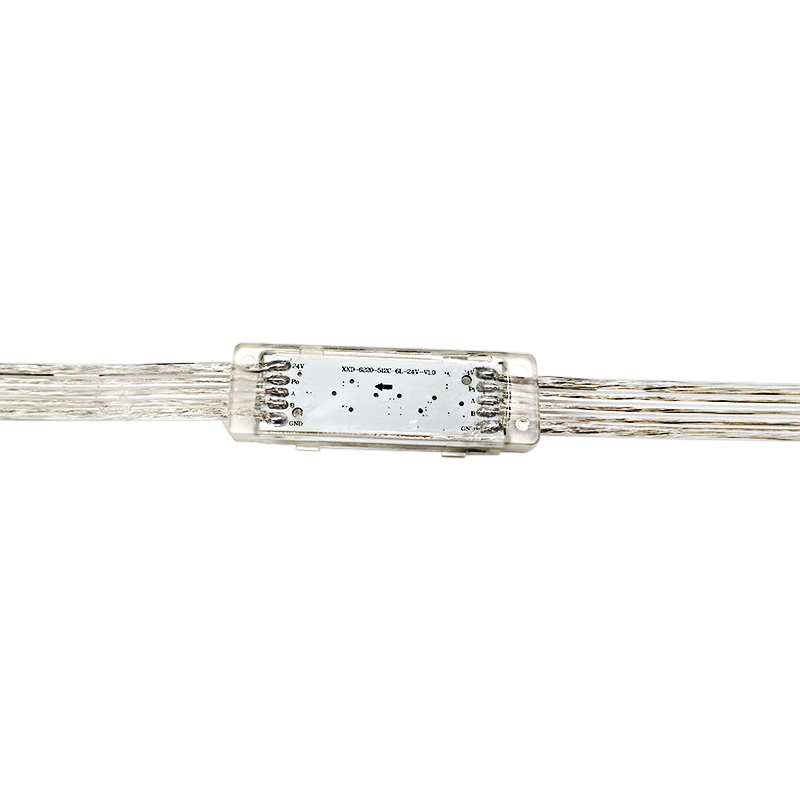

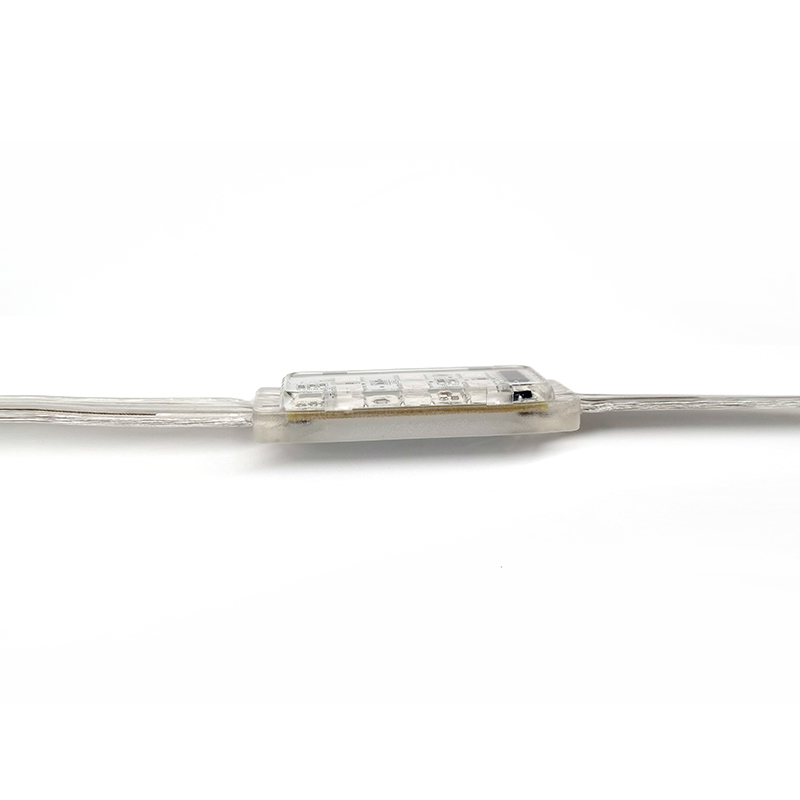

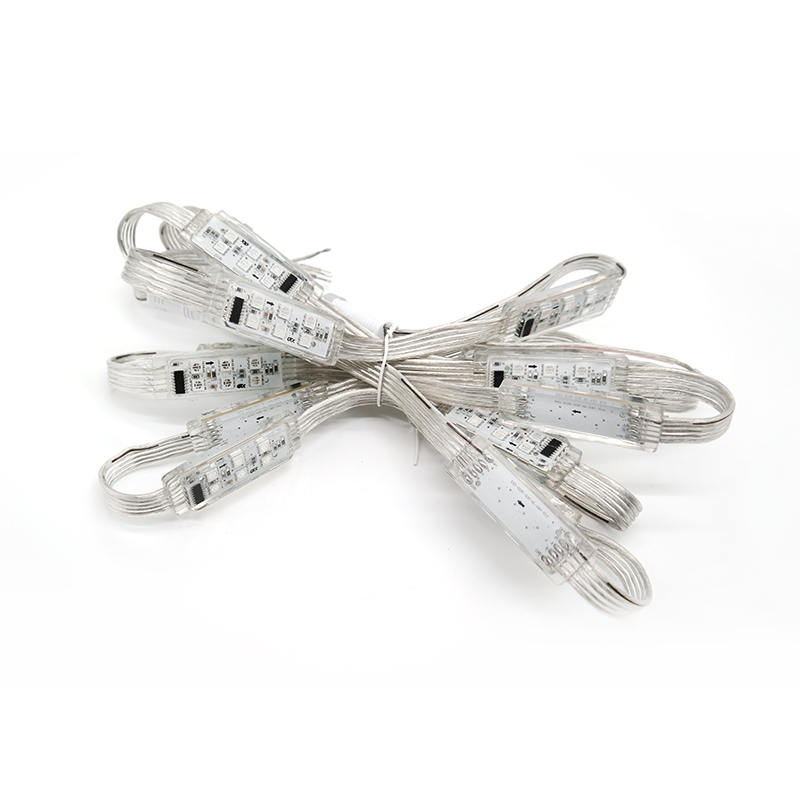

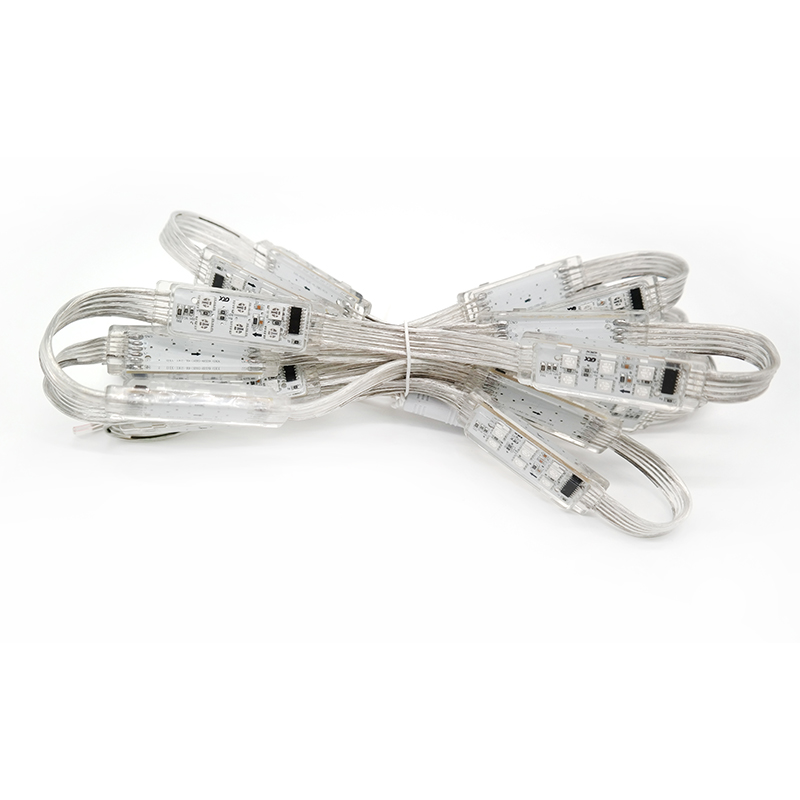

GP-L6220 RGB Linear Pixel Strip Light is popular for facade lighting projects
SKU |
GPX-L6220RGB |
Operating voltage |
DC24V |
Power/Bulb |
1.44W |
SMD Type |
SMD5050*6RGB |
Lamp Qty/string |
120PCS/String |
Control Mode |
2000-6500K, SPI, DMX512 |
LED Chip |
Epistar, Cree, Osram….. |
Luminous flux |
43.35LM |
Material |
PVC+PC |
Diameter |
62mm*20mm*10mm |
Beam angle |
120° |
IP Rate |
IP66 |
Cable Type |
2x1mm²+3×0.35mm² |
Operating Temp |
-45℃ to 55℃ |
Product Feature
1. Adopt a one-piece molding process with high protection level IP66 Waterproof;
2.It is small in size, exquisite in appearance, ultra-thin and transparent, and suitable for indoor and outdoor use;
3. High-quality resistance rubber, anti-UV, anti-salt spray;
4. The special strip-shaped appearance design perfectly solves the outdoor durability of traditional modules and light strips
Not enough questions
Dimension Drawing

Linear Pixel Strip Light Installation

Application
- Architectural lighting: Linear Pixel Strip Light is often used to enhance the visual appeal of architectural structures such as buildings, bridges, and monuments. The linear arrangement of the LED lights can create interesting patterns and effects that highlight the features of the structure.
- Commercial lighting: Linear Pixel Strip Light is commonly used in retail stores, restaurants, and other commercial spaces to create an inviting and visually appealing environment. The LED lights can be programmed to change colors and patterns, which can help create a distinctive brand identity for the business.
- Entertainment lighting: It is often used in stage productions, concerts, and other entertainment events to create dynamic lighting effects that enhance the performance. The LED lights can be synchronized with music or other sound effects to create an immersive experience for the audience.
- Home lighting: Linear Pixel Strip Light can be used in homes to create accent lighting in various areas such as the living room, kitchen, and bedrooms. The flexibility and compact size of the LED strip make it easy to install in tight spaces and around corners.
- Outdoor lighting: Linear Pixel Light can be used to create outdoor lighting effects such as outlining the perimeter of a building or highlighting a garden pathway. The LED lights are durable and weather-resistant, making them suitable for outdoor use in all types of weather.
