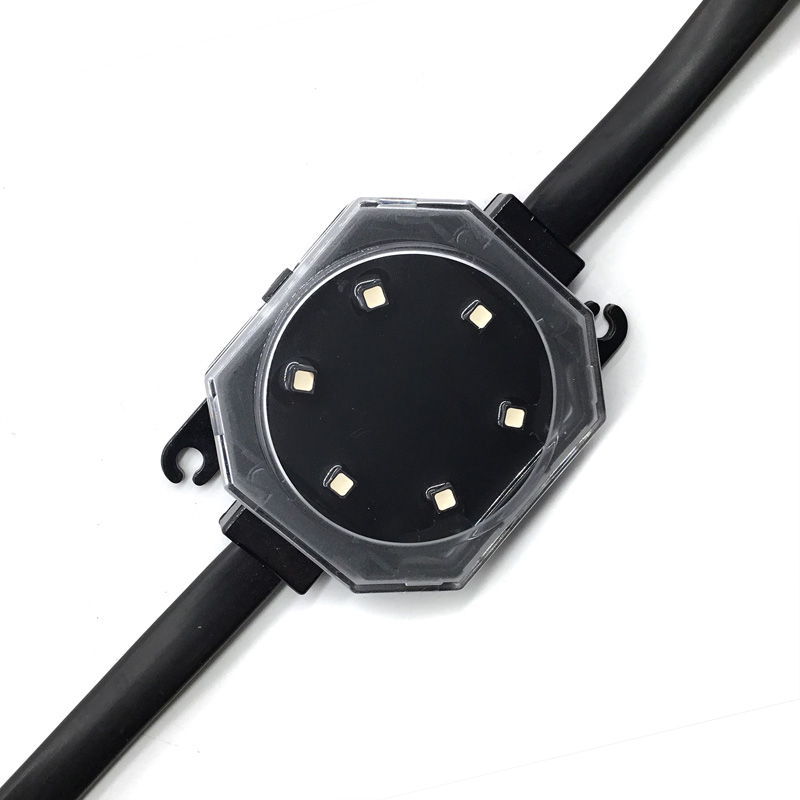

GP-K45 IP67 RGB Architectural LED Media Facade Lighting for Outdoor Lighting projects

LED Facade Light Application

  • Bridge outlines, buildings, hotels, billboards, curtain walls, cultural and tourist attractions, night lights
  • Screen of extra exterior sign and building, Lighting for city signage.
  • Interior decorative lighting of Bar, KTV entertainment place and stage decoration.

Specification

LED facade lighting has a number of other features that make it an attractive option for architects, designers, and property owners. One of these features is its low heat emission. Unlike traditional lighting solutions, Architectural LED Lighting emits very little heat, which means they are less likely to cause damage to building materials or surrounding structures. This is particularly important for outdoor lighting applications where the lighting fixtures are exposed to the elements.

Another advantage of LED facade lighting is its ability to produce dynamic lighting effects. With the use of DMX technology, GPX Architectural LED Lighting can be programmed to create a wide range of lighting effects, from simple color changes to complex animations. This makes them ideal for use in public spaces, such as plazas and parks, where dynamic lighting can enhance the overall aesthetic.

Architectural LED Lighting also offers a high degree of control over lighting levels and color temperature. With dimming capabilities and adjustable color temperatures, designers can create lighting solutions that are tailored to specific environments and moods. This is particularly important for interior lighting applications where lighting can affect the mood and productivity of occupants.

Another important feature of LED facade lighting is its ease of installation. Architectural LED Lighting is typically smaller and lighter than traditional lighting fixtures, which makes them easier to install and maintain. They also require less wiring, which can reduce installation costs and time.

In summary, LED facade lighting offers a range of features that make it an ideal solution for outdoor and indoor lighting projects. From energy efficiency and durability to dynamic lighting effects and ease of installation, LED lights provide a range of benefits that can enhance the aesthetics and functionality of any space.

    SKU     GPX-K45/RGB/RGBW
    Operating voltage      DC24V
    Power/Bulb     1.44W/1.92W
    SMD Type     SMD3535*6RGB /SMD3535*6RGB+2White LED
    Lamp Qty/string     100 PCS/String
    Control Mode     2000-6500K, SPI, DMX512
    LED Chip     Epistar, Cree, Osram…..
    Luminous flux     34LM
    Material     PC
    Diameter    Φ55mm*50mm*15.2mm
    Beam angle     120°
    IP Rate     IP67
    Cable Type     2×0.75mm²+3×0.3mm²
    Operating Temp     -40℃ to 55℃

Product Feature

1. Among the advantages of LED Pixel lighting are that they are durable, energy-saving, waterproof and antifreeze, antifreeze, highlight, etc.;
2. Designed with a 120-degree wide-angle lens, allowing for a greater viewing angle;
3. The led pixel light’s installation is very concealable, there are no lamp beads, and the pixel-led lamp structure is not visible during the daytime;
4. Work well in a variety of scenes, and provide super textured lighting effects;
5. All designers’ pursuit of the light is satisfied with DMX 512 RGBCW 2000K-6500K color gamut;

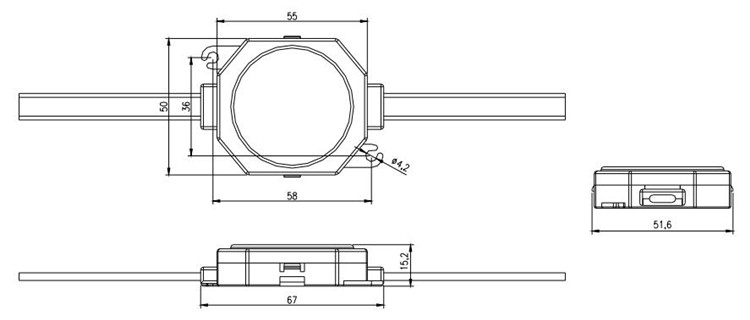

Dimension Drawing

Installation

Application
