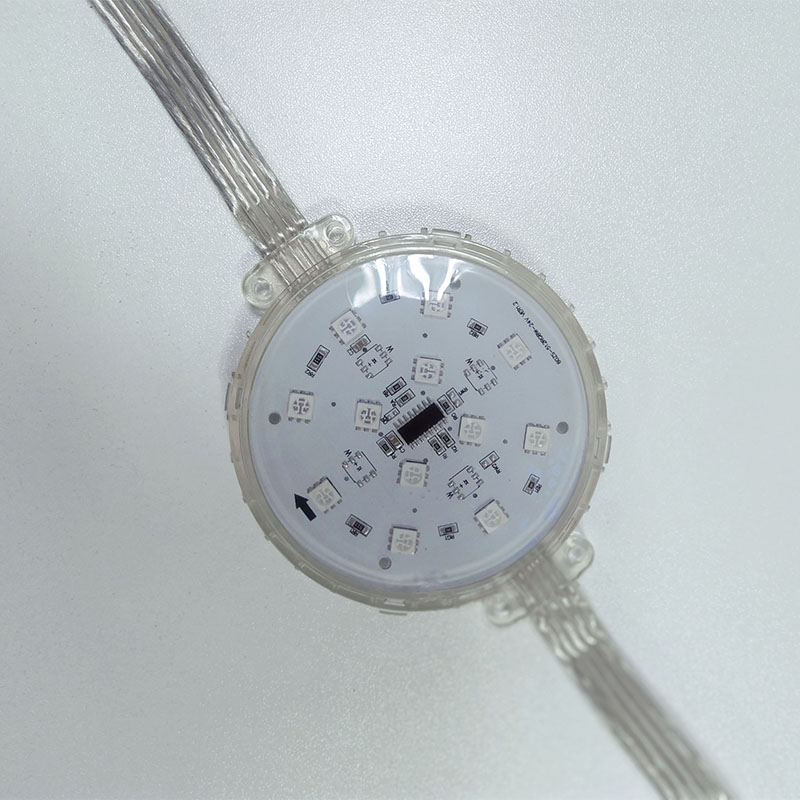

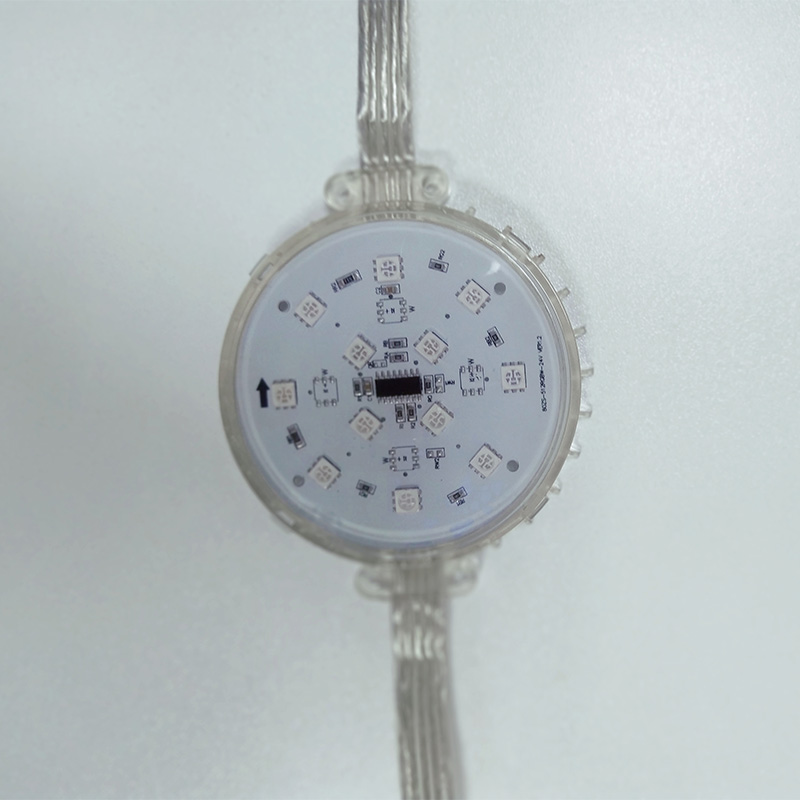

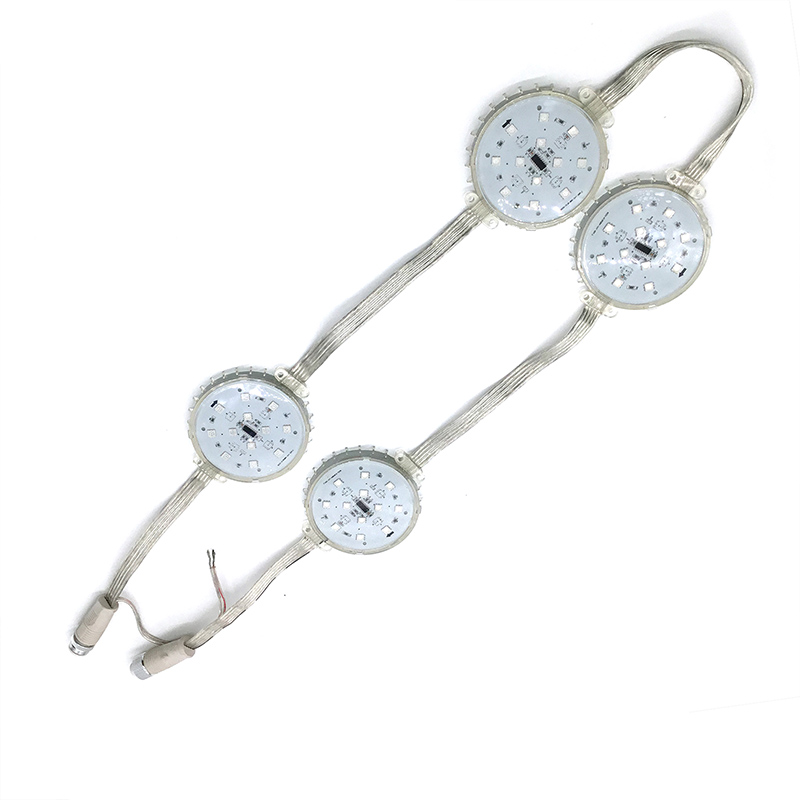

GP-DZ80 Addressable DMX LED Point Light Source

50MM LED Point Light Application

  • Outline of building and bridge.
  • Screen of extra exterior sign and building, Lighting for city signage.
  • Landscape of large buildings Lighting and outlines of large bridges
Contact Supplier

Specification

GP-DZ80 Addressable DMX LED Point Light Source is a type of LED lighting module that has the capability to be individually controlled and addressed through a DMX controller. The DMX protocol allows for precise control of the addressable LED point light color, brightness, and animation.

    SKU     GPX-DZ80RGB/RGBW
    Operating voltage                                        DC24V
    Power/Bulb   2.88W/3.84W
    SMD Type     SMD5050*12RGB /SMD5050*12RGB+4 White LED
    Lamp Qty/string     80PCS/String
    Control Mode     2000-6500K, SPI, DMX512
    LED Chip     Epistar, Cree, Osram…..
    Luminous flux     120LM
    Material     PVC+PC
    Diameter Φ50mm*10mm
    Beam angle     120°
    IP Rate     IP66
    Cable Type 2×0.75mm²+2×0.35mm²
    Operating Temp     -45℃ to 55℃

Product Feature

1. Adopt a one-piece molding process with high protection level;
2. High-quality resist rubber, anti-UV, anti-salt spray;
3. Adapt to a variety of installation methods, the installation is simple and reliable;
5. The product is a larger LED point light source with high brightness; it is suitable for the landscape of large buildings Lighting and outlines of large bridges.

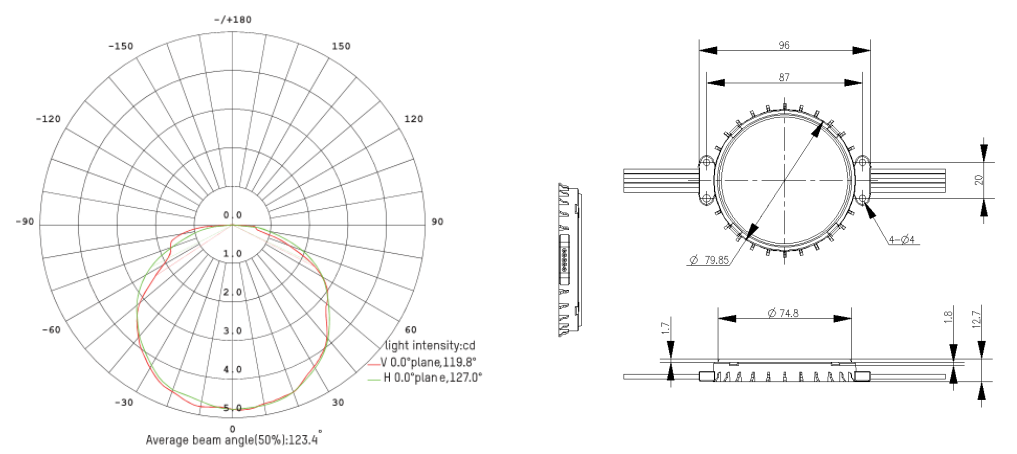

Dimension Drawing

Installation

Function

  1. Individual control and addressing: Each LED point light can be individually controlled and addressed through a DMX controller. This means that each light can be programmed to display a unique color, brightness, and animation.
  2. Color changing: It can change colors and create a wide range of color effects. With a DMX controller, the color can be changed instantly, smoothly or in a pre-programmed sequence.
  3. Dimming: The brightness of the LED Point Light can be adjusted through the DMX controller. The dimming function allows for the creation of various lighting effects and helps to save energy.
  4. Animation: Addressable DMX LED Point Light can create various animation effects such as fades, strobes, and chases. The animation function adds an extra element of creativity and visual interest to lighting displays.
  5. Synchronization: Multiple can be synchronized to display the same color, brightness, and animation. This allows for the creation of complex and coordinated lighting displays.



Overall, the Addressable DMX LED Point Light is a versatile and customizable lighting solution that provides precise control, color changing, dimming, animation, and synchronization. The DMX controller makes it easy to program and control the lights to create the perfect lighting display.
