30MM IP67 12V RGB Exterior Pixel Light For Architectural Lighting Projects

30MM LED Point Light Application

  • Bridge outlines, buildings, hotels, billboards, curtain walls, cultural and tourist attractions, night lights
  • Specialty stores and large shopping malls
  • Lighting for entertainment venues and beauty salons
  • Atmosphere lighting for leisure places such as bars and cafes

Specification

Product Feature

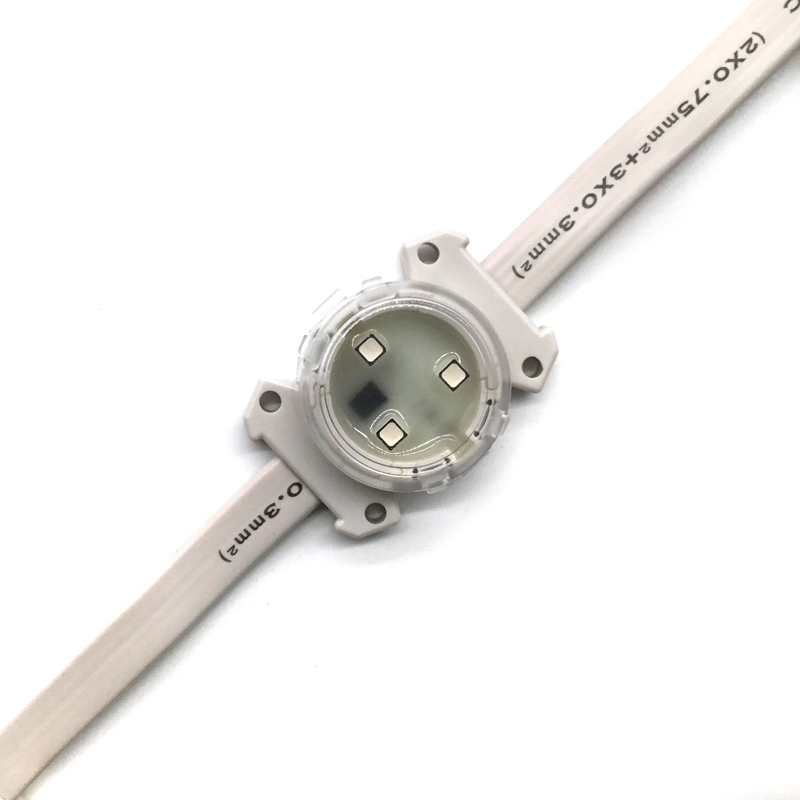

GPX IP67 12V RGB Exterior 30MM LED Pixel Light Module is the ideal solution for all your architectural lighting projects. This high-quality 30MM LED Pixel light module is designed to provide stunningly bright and vivid colors that will enhance any exterior space.

Made to withstand the toughest weather conditions, this waterproof LED Pixel light module is rated IP67, meaning it is completely sealed to prevent water and dust from getting inside. This makes it ideal for use in outdoor applications where moisture and humidity are a concern. Whether you are located in a rainy or coastal area, this LED light module will give you peace of mind knowing that it can withstand the elements.

This LED light module is also highly versatile and customizable, thanks to its RGB color changing capability. With the ability to control each individual light pixel, you can create dynamic and eye-catching lighting displays that will impress anyone who sees them. And with a 12V power supply, it is easy to install and use.

Additionally, this LED light module is highly energy efficient, using only a fraction of the power of traditional lighting systems. This means you can enjoy stunning lighting effects without having to worry about high energy bills.

Installation is also a breeze, thanks to the compact and lightweight design of this LED light module. Measuring just 30mm in diameter, it can be easily mounted onto any surface using adhesive or screws. This makes it perfect for use in a wide range of architectural lighting projects, from accent lighting to full-scale decorative displays.

In conclusion, if you’re looking for a durable, versatile, and energy-efficient LED light module that can withstand the elements and provide stunning lighting effects for your architectural lighting project, the 30MM IP67 12V RGB Exterior Pixel Light Module is a perfect choice.

    SKU     GPX-XR30/RGB/RGBW
    Operating voltage      DC12V
    Power/Bulb    0.72W/0.96W
    SMD Type     SMD3535*3RGB /SMD3535*3RGB+1 White LED
    Lamp Qty/string    100 PCS/String
    Control Mode     2000-6500K, SPI, DMX512
    LED Chip     Epistar, Cree, Osram…..
    Luminous flux     18.72LM
    Material     PVC+PC
    Diameter    Φ30mm*14.5mm
    Beam angle     120°
    IP Rate     IP67
    Cable Type     2×0.75mm²+3×0.3mm²
    Operating Temp     -40℃ to 55℃

Key Features

1. GP-XR30 pixel led Adopts High bright SMD3535 as a light source
2. With Quality Optical lens
3. RGB LED Point Light Source has a Constant voltage DC12V design, light output stability
4. Anti-Fire rating to 94V-0, Anti-UV
5. Better heat dissipation
6. Led pixel dot has CE and RoHS certification
7. OEM&ODM are available

Dimension Drawing

Installation

Application
