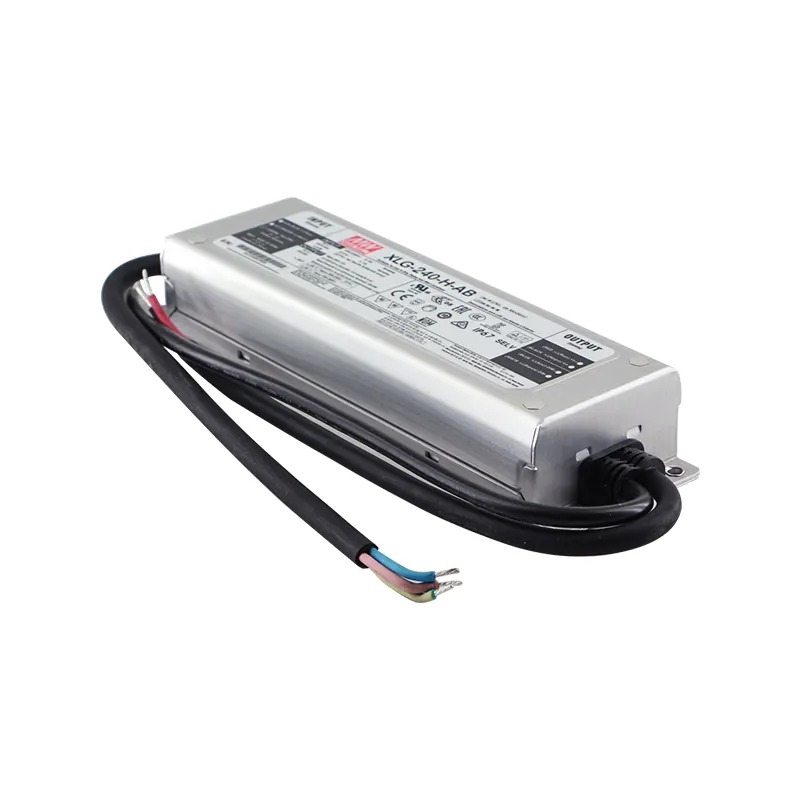

XLG LED Driver LED Power Supply Product Feature

MEANWELL XLG LED Driver LED Power Supply Waterproof Dimmable 20w 25w 50w 75w 100w 150w 200w 240w 320w 12v 24v LED Power Supply
Features:
• Full power output at 70~100% Constant power mode operation
• Wide input range 100~305V AC( ClassⅠ)
• Built-in active PFC function
• Metal case with IP67, suitable for outdoor application
• Surge protection with 6K V/4K V (10K V/6K V optional)
• India (EESL) version with Input Over Voltage Protection can survive input voltage stress of 440Vac for 48 hours
• 5 years warranty
• Protections: Over current(for 12,24V)/Overpower(for L,M,HType)/ Over temperature /Short circuit /Input over-voltage(for India version)

XLG Meanwell LED Power Supply series officially debuts today. Combining the experienced of engineers, the rigorous testing of DVT / DQT of the internal quality assurance department, and obtaining international product safety regulations, the XLG family (25~240W) products are launched. It is expected that the pre-order will boom again, while MEAN WELL will continue to increase the quantity of inventory in response. ‘https://www.meanwell.com/newsInfo.aspx?c=1&i=756’

Users who have utilized the XLG LED Driver LED Power Supply products (XLG-25/50/75/100/150/200 series) must be familiar with the features of the entire XLG series. The full series adopts the constant power, compact size and latest safety regulation design, making it easier to design for the end products. For the output current and inventory aspects, it is the best-fit products.

In addition, in terms of quality, with more than 35 years of experience, we are able to minimize the problems that may occur in the subsequent application stage and we believe good quality is the implementation from design stage.

 Packaging information

XLG-25/50 105*63*30mm (L*W*H) 0.41Kg;24pcs/ 10.5Kg/0.68CUFT for A-type 0.42Kg;24pcs/ 11Kg/0.68CUFT for AB-type
XLG-75/100 140*63*32mm (L*W*H) 0.58Kg;24pcs /15Kg /0.85CUFT
XLG-150 180*63*35.5mm (L*W*H) 0.8Kg;16pcs / 13.4Kg /0.67CUFT
XLG-200 199*63*35.5mm (L*W*H) 0.85Kg;16pcs /14.2Kg /0.72CUFT
XLG-240 219*63*35.5mm (L*W*H) 1Kg;16pcs / 16Kg / 0.77CUFT
