LED Driver for Pixel Lighting is a series of efficient outdoor IP67 waterproof LED Driver for pixel lighting that includes CC+CV— 12V/24V/36V/48V/54V low-voltage design and constant current output350/500/700/1050/1400/1750/2100/2800/3500 mA design. The products could be widely applied to a variety of fields. The 3in1 and DALI dimming functions enable them to use in any kind of constant voltage LED light strip or constant current luminaires. The wattage covers 40W/60W/80W/100W/ 120W/150W/185W/240W/320W/480W and 600W. HLG series is of high reliability with 7 years warranty.
Wattage: 40W~600W
90~305VAC input, built-in active PFC function

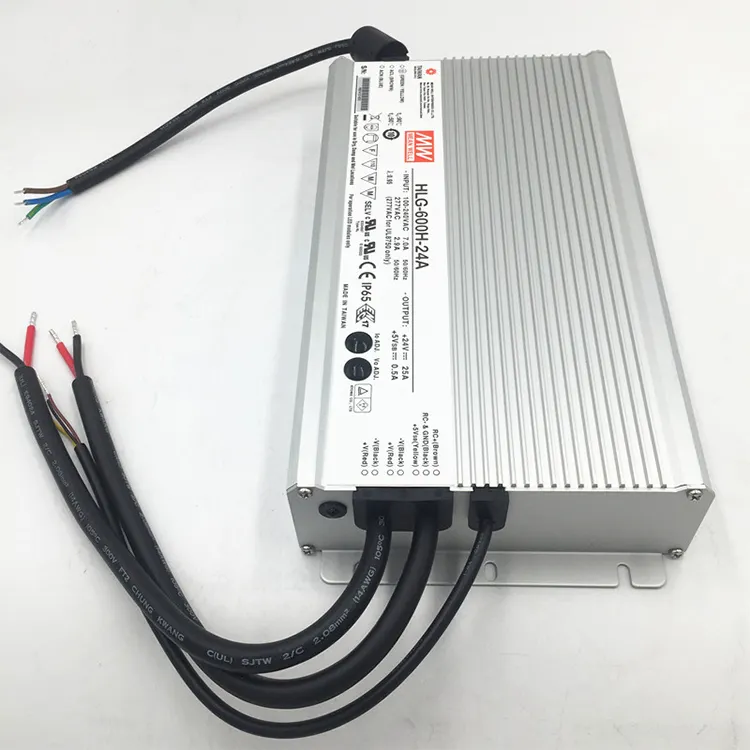

96% high efficiency (HLG-600H)

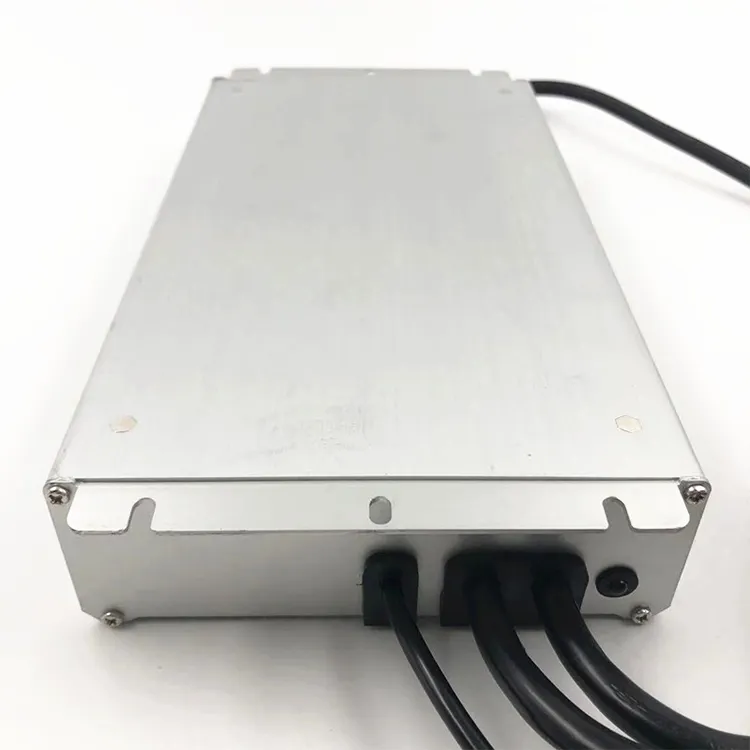

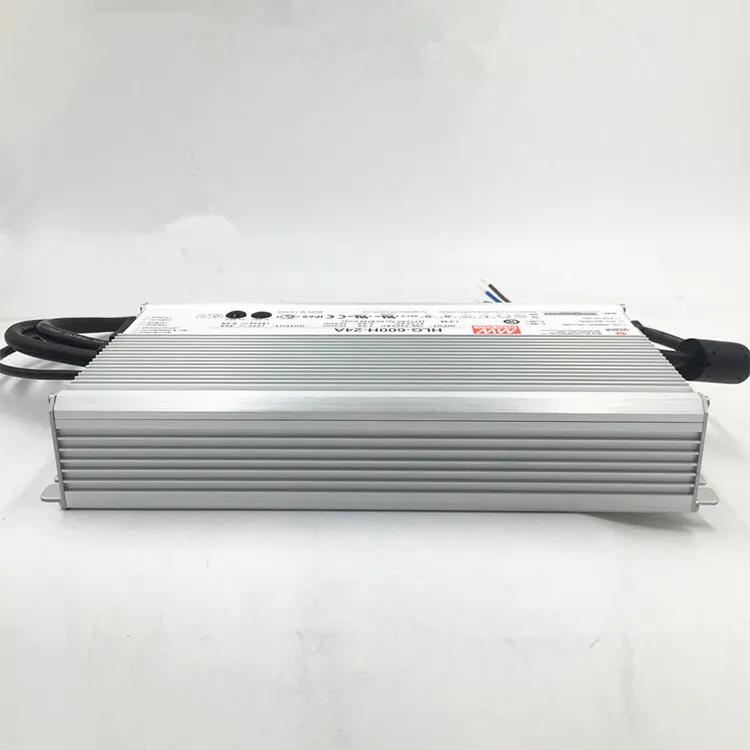

Metal case, IP67/IP65 design for indoor or outdoor installations
Type “HL” LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries
Suitable for LED street lighting, outdoor LED lighting, and general outdoor applications with high IP requirement
IP68/-55℃ startup/10G vibration options available (Please contact MEAN WELL for details)
7 years warranty
HLG(-C) series consist of a 40 W to 600 W AC/DC LED Power supply that features both constant voltage and constant current output products. This series operates from 90 VAC to 305 VAC and offers a large selection of models with various output voltage and current ratings in order to fit all types of LED lighting applications. Thanks to outstanding efficiency and fanless design, the HLG(-C) drivers are able to operate in harsh environments and extreme temperature conditions. Ranging from -40°C to +90°C case temperature under free air convection.
The design of metal housing along with IP67 and IP65 ingress protection level allows these LED drivers to fit both indoor and outdoor applications. The HLG series provide maximum reliability and optimal design flexibility. And various function options such as different dimming methodologies for any LED lighting system.
