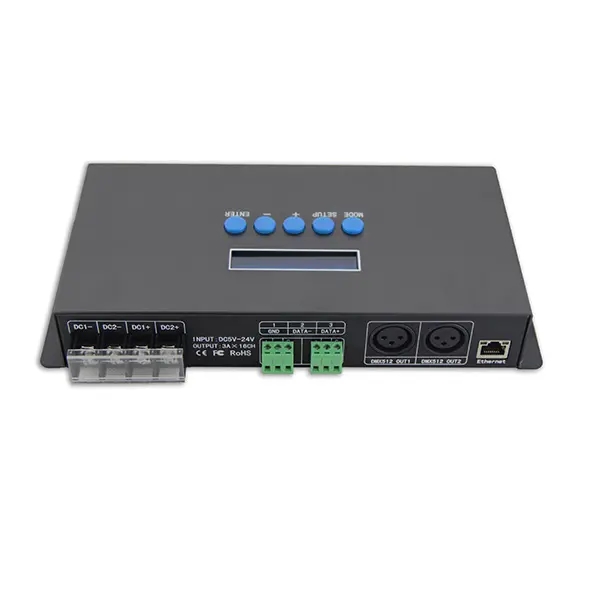

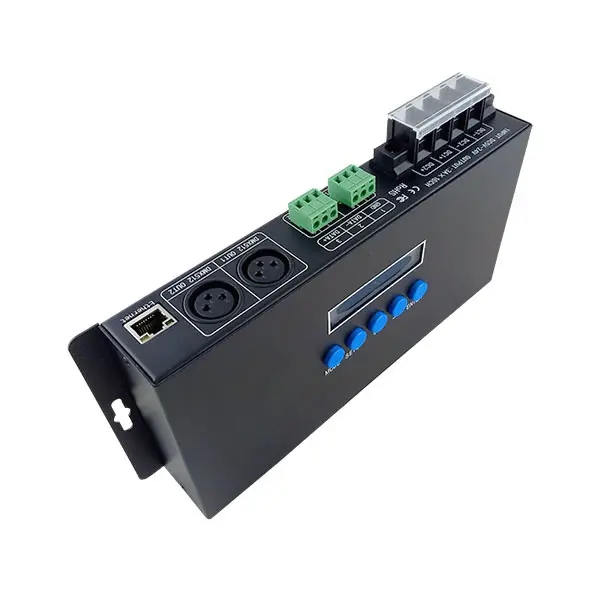

This Artnet-SPI/DMX Pixel light controller is dedicated to converting the Artnet signal into SPI signal, which is designed for large projects with high-density pixel light, such as 3D RGB LED Pixel Ball lights, LED Linear lamps, LED Pixel Strip, etc. Besides converting Artnet-based control protocols into various LED driving IC signals, This Artnet Lighting Controller also outputs DMX512 signals at the same time, convenient for the connection of different types of led lamps, and achieving the unified control of all kinds of led lamps in the same project.
Feature Function:
1. With LCD display and built-in WEB SERVER setting interface, easy operation
2. Support Ethernet DMX protocol ArtNet E1.31, which can be expanded to other protocols.
3. 16 channels SPI(TTL) signal output, up to 5440 pixels control.
4. Output DMX512 signal simultaneously, convenient for the connection of different types of LED Pixel lamp.
5. Support various LED driving IC, and flexible control.
6. Support online firmware upgrade
7. Adopt a DIP plug-in design for the easily-worn parts, Users can repair the damage caused by wrong wiring or short circuit
8. Built-in test mode, using a networking interface with an indicator light, work status is clear when at a glance.
Warranty(Year)::3-Year
Lighting Solutions service: Project Installation
Type: MANUAL SWITCH
Max. Load Power:1152W
Name: DMX512 interface programmable dmx led light controller
Working voltage: DC5V-24V
Output current:3A*16 channels
Input Ethernet control protocol: Artnet, E1.31
Output control IC: 2811/2801/2812/2812b/6803/3001/8806/9813
Control pixels: RGB: 340 Pixels*16CH RGBW: 256 Pixels*16CH
Output DMX: Two ports (2*512 channels)
Production dimension: L258* W145* H41(mm)
Weight:1100g
Color: Black
IC Type | Compatible ICs | Type |
2811 |
TM1803, TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, UCS2903, UCS2909, UCS2912, WS2811, WS2812B, SM16703P etc. |
RGB |
2801 | WS2801, WS2803, etc. | |
6803 | LPD6803, LPD1101, D705, UCS6909, UCS6912 etc. | |
3001 | TLS3001, TLS3002 etc. | |
8806 | LPD8803, LPD8806, LPD8809, LPD8812 etc. | |
9813 | P9813 etc. | |
TM1814 | TM1814 etc. | RGBW |
SK6812 | SK6812, UCS2904, P9412 etc. |
