GP-DZ30 dmx512 Waterproof Ip67 Led pixel Dot light

30MM LED Pixel Dot Light Application

  • Hotels, restaurants, night clubs,
  • Coffee / wine bars, shopping malls
  • Building Facade, Garden
Contact Supplier

Specification

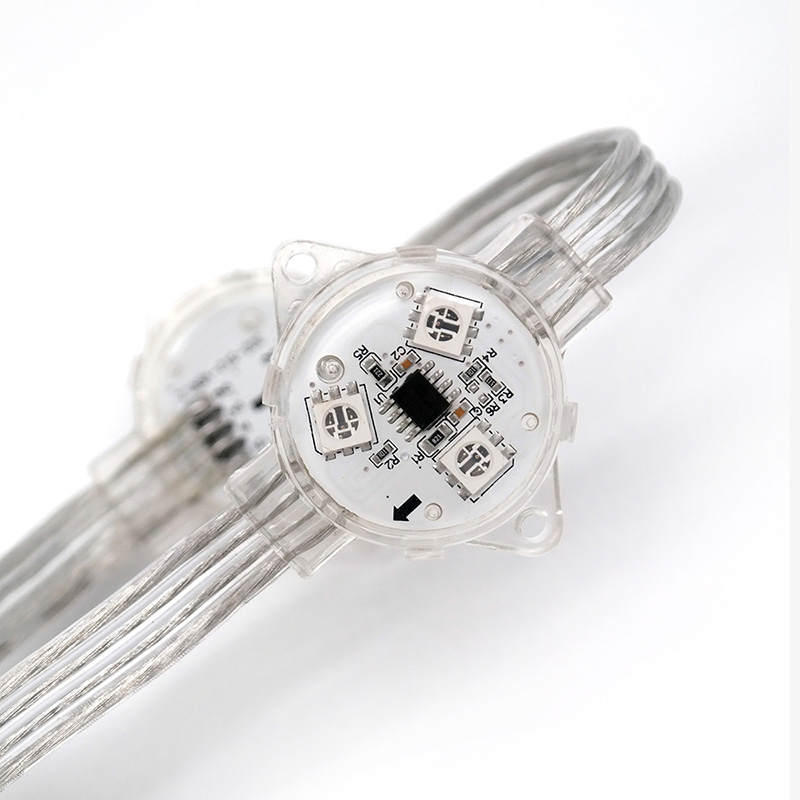

GP-DZ30 dmx512 Waterproof Ip67 Led pixel Dot light is a type of LED lighting module that consists of a small cluster of LED lights that can produce a single color or multiple colors. LED pixel dot lights are small in size and can be easily controlled to create various lighting effects.

    SKU     GPX-DZ30RGB
    Operating voltage                                        DC12V
    Power/Bulb     0.72W
    SMD Type     SMD5050*3RGB
    Lamp Qty/string     120PCS/String
    Control Mode     2000-6500K, SPI, DMX512
    LED Chip     Epistar, Cree, Osram…..
    Material     PVC+PC
    Diameter Φ29.8mm*10.5mm
    Beam angle     120°
    IP Rate     IP67
    Cable Type 2×0.75mm²+2×0.35mm²
    Operating Temp     -30℃ to 55℃

Product Feature

1. Options include RGBW and RGB LEDs that are monochromatic and color-changing.
2. With COLOR-AMP® Technology, you get the industry-leading light output
3. Proprietary Technology for extremely reliable IP66 and IP67 protection against water ingress
4. Professional Technology to enable exceptionally long lighting circuits

Dimension Drawing

Installation

Application

Linear Pixel Dot Light is a type of LED lighting module that consists of a series of small LED lights arranged in a linear shape. It is a versatile lighting solution that can be used in a variety of applications to create dynamic and visually stunning lighting displays. Some common applications of Linear Pixel Dot Light include:

  1. Architectural lighting: LED Pixel Dot Light can be used to enhance the beauty of buildings and structures. It can be used to highlight architectural features such as columns, arches, and facades.
  2. Stage lighting: LED Pixel Dot Light is often used in stage lighting to create dynamic and visually appealing lighting displays. It can be used to create color washes, chases, and other lighting effects.
  3. Event lighting: LED Pixel Dot Light is used in event lighting to create unique and eye-catching lighting displays. It is often used in concerts, festivals, and other events to create visually stunning lighting effects.
  4. Retail lighting: Linear Pixel Dot Light is used in retail lighting to highlight products and create engaging visual displays. It can be used to create shelving lighting, display lighting, and accent lighting.
  5. Signage lighting: Linear Pixel Dot Light can be used to light up letters and shapes in signs. It is a great way to draw attention to the sign and make it stand out.



Overall, Linear Pixel Dot Light is a versatile lighting solution that can be used in a variety of applications to create dynamic and visually appealing lighting displays.
