Performance Highlights

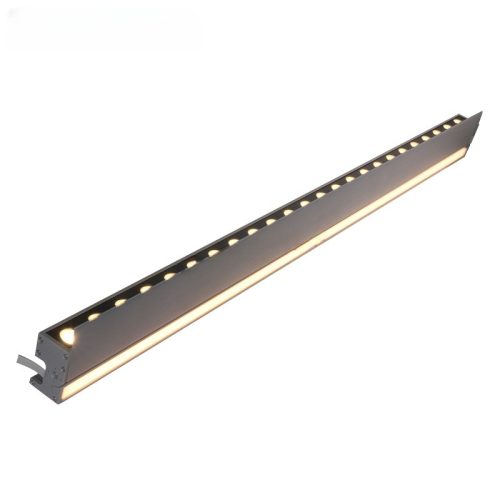

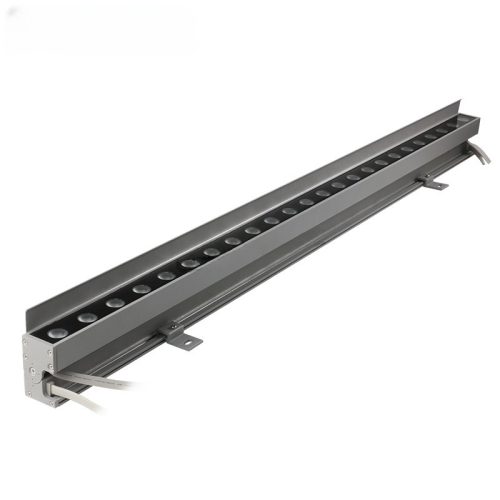

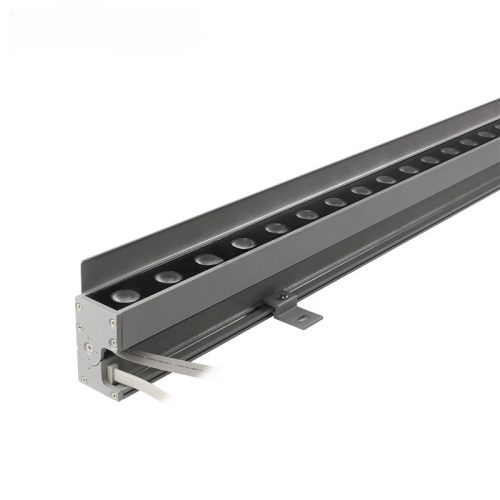

High-Quality Construction: RGBW Wall Washer Light Housing built with aluminum alloy and tempered/glass diffuser for durability and heat dissipation. IP65–IP67 certified for long-term outdoor use.
Widely supported lighting protocols like SPI and DMX512 enable precise control over effects and animations
Efficient Optics: Carefully engineered beam angle options and optical lenses deliver uniform, energy-efficient illumination (up to ~120 lm/W).
Warranty & Lifespan: Standard ~50,000 h lamp life with a 3‑year warranty (extendable to 5 years).
| SKU | X40L |
| Operating voltage | DC24V / AC110-220V |
| Power/Bulb | 12W/18W/24W/36W etc |
| SMD Type | SMD LED |
| LED Qty | 12pcs / 24pcs etc |
| Control Mode | SPI, DMX, Monochrome |
| LED Chip | Epistar, Cree, Osram, Philips….. |
| Luminous flux | 100LM/W |
| Material | Aluminum |
| Diameter | L1000XW40XH90MM |
| Beam angle | 8°/15°/30°/45°/60°/10X60° |
| IP Rate | IP67 |
| Electrical Safety Level: | Class III |
| Operating Temp | -40℃ to 80℃ |

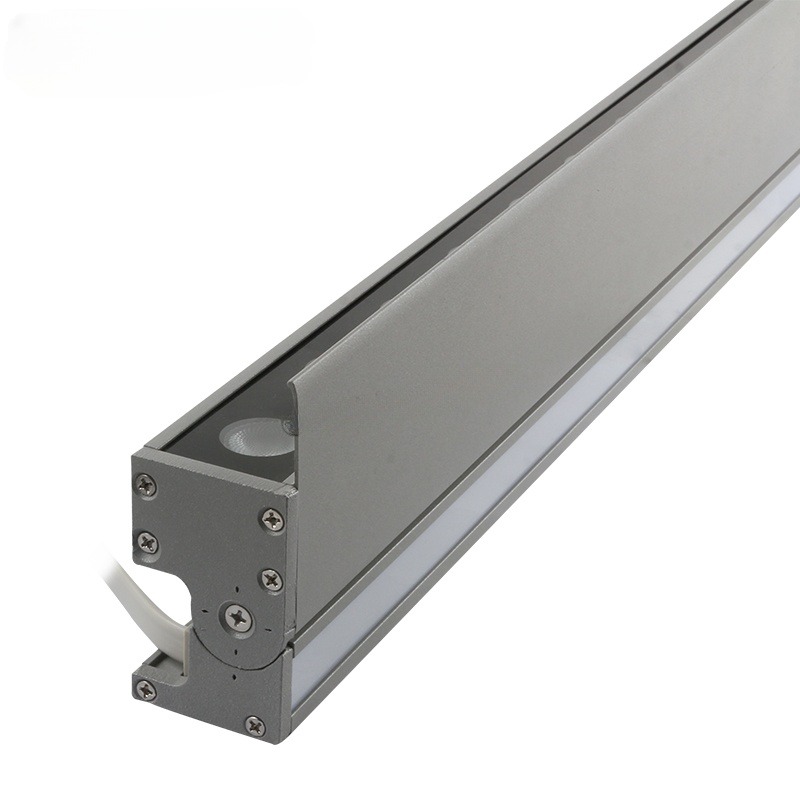

1.Die-cast aluminum alloy housing with RGBW Wall Washer Light for excellent heat dissipation.
2.IP66–IP67 waterproof rating, ensuring reliable outdoor performance in rain, dust, and humidity.

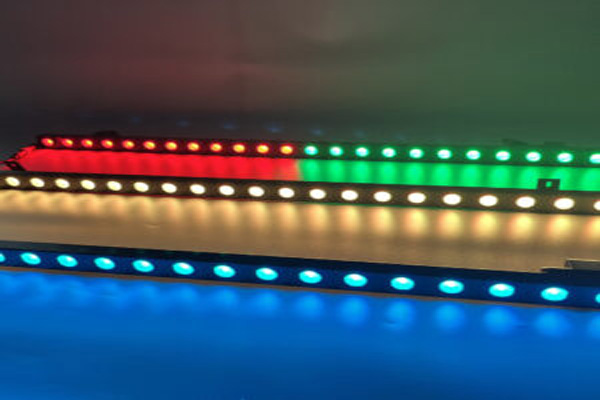

3.Available in static white, tunable white, RGB, RGBW, and pixel-controlled (DMX/SPI) formats.
4.Adjustable beam angles: 8°, 15°, 30°, 45°, 60°, 10×60°, or 120° for different lighting effects (narrow spot to wide flood).
5.Smart addressable pixel lights allow individual LED control for animations, gradients, and video mapping.
6.Input voltage options: DC24V or AC110–220V for global compatibility.
7.Power consumption ranges from 12W to 48W+, depending on size and LED configuration.
8.Various lengths available: typically 300mm, 500mm, 1000mm, or customizable to project needs.
