Performance Highlights
IP67 LED Washer Lighting is a versatile architectural lighting solution designed to illuminate vertical surfaces with a smooth and uniform wash of light. Commonly used in outdoor façade lighting, landscape design, and commercial building decoration, LED wall washers enhance architectural details and create dynamic visual effects for both functional and aesthetic purposes.
These fixtures are available in various beam angles, color temperatures, and control options, making them ideal for lighting up hotels, landmarks, bridges, malls, museums, and other large-scale projects.
| SKU | X38L |
| Operating voltage | DC24V / AC110-220V |
| Power/Bulb | 12W/18W/24W/36W etc |
| SMD Type | SMD LED |
| LED Qty | 12pcs / 24pcs etc |
| Control Mode | SPI, DMX, Monochrome |
| LED Chip | Epistar, Cree, Osram, Philips….. |
| Luminous flux | 100LM/W |
| Material | Aluminum |

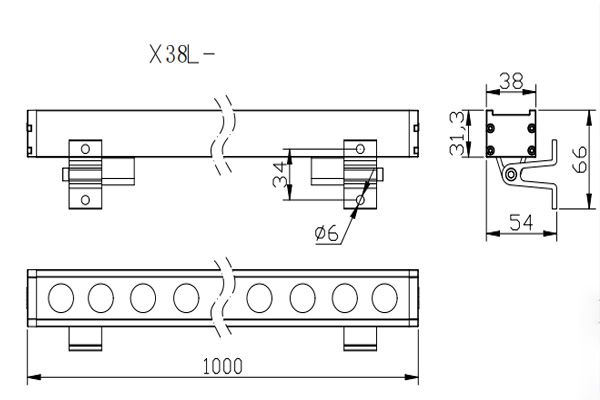

| Diameter | L1000XW38XH66MM |
| Beam angle | 8°/15°/30°/45°/60°/10X60° |
| IP Rate | IP67 |
| Electrical Safety Level: | Class III |
| Operating Temp | -40℃ to 80℃ |
Slimline Design: IP67 LED Washer Lighting is sleek, compact aluminum housing ensures elegant integration with various architectural styles.
High Brightness LEDs: Utilizes top-brand LEDs for consistent color and brightness across large surfaces.
DMX/RDM Control (Optional): Supports dynamic RGB, RGBW, or single-color lighting with smooth dimming and scene programming.
Multiple Beam Angles: Available in various optics (10°, 30°, 60°, 10×60°, etc.) to suit wide and narrow wash applications.
Weatherproof Build: IP67-rated enclosure ensures excellent performance in harsh outdoor environments.
Energy-Efficient: Low power consumption with high lumen output and long lifespan (>50,000 hours).
Customizable Lengths: Standard length is typically 1000mm, with custom lengths available upon request.
Easy Installation: Adjustable mounting brackets allow flexible aiming for precise lighting direction.
