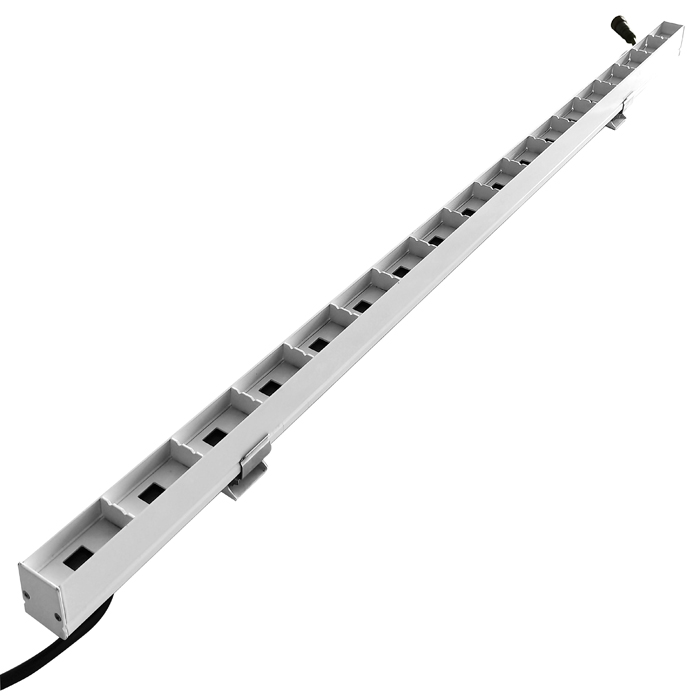

Asymmetrical Beam Projection IP67 LED Linear Wall Washer Lights

LED Linear Wall Washer Lights Application

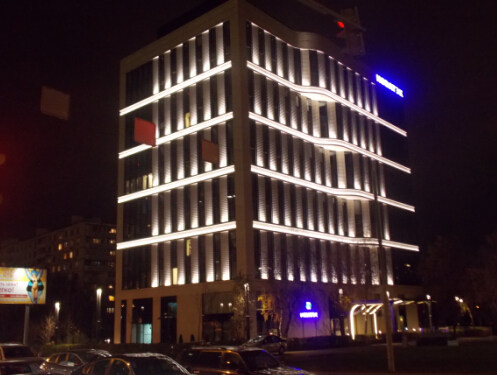

  • Architectural wall rinsing (fairly large facades, columns, or signage).
  • Landscape and pathway accent lighting.
  • Parks, bridges, plazas, or installations requiring dynamic color wash effects.
  • Commercial buildings, shopping centres, entertainment venues.
Contact Supplier

Specification

Performance Highlights

Asymmetrical Beam Design: Designed to deliver glare-free, uniform illumination across large vertical surfaces.

Flexible Control: With DMX/SPI control you can craft custom lighting animations—perfect for architectural shows or branding effects.

Energy Efficient: High lumen output with low power consumption—great balance of performance and efficiency.

Robust & Weather‑Resistant: Built for long-term outdoor use with solid ingress protection and durable materials.

OEM & Customization Friendly: GPX LED Company supports custom length, lens, color temperature and control interface options to fit unique project needs.

    SKU     X29DL
    Operating voltage    DC24V / AC110-220V
    Power/Bulb    12W/18W/24W/30W
    SMD Type     SMD LED
    LED Qty     12pcs / 24pcs etc
    Control Mode    SPI, DMX,  Monochrome
    LED Chip     Epistar, Cree, Osram, Philips…..
    Luminous flux    100LM/W
    Material    Aluminum
    Diameter    L1000XW29XH55MM
    Beam angle    8°/15°/30°/45°/60°/10X60°
    IP Rate     IP67
    Electrical Safety Level:    Class III
    Operating Temp     -40℃ to 80℃

Product Feature

1. Asymmetric Light Output

  • Designed with a customized asymmetric beam angle for LED Linear Wall Washer Lights optimal vertical wall washing.

  • Provides uniform light distribution without hotspots, ideal for tall facades and architectural surfaces.

2. High Brightness & Energy Efficiency

  • Utilizes high-lumen SMD or high-power LEDs (brands like Osram, Cree, or Epistar).

  • Achieves high luminous efficiency (up to 110–120 lm/W), reducing power consumption without sacrificing brightness.

3. DMX512 / SPI Control Support

  • Compatible with DMX512 or SPI protocols for dynamic color control.

  • Supports RGB / RGBW / single color (warm white, cool white, amber, etc.) options.

  • Enables chasing, fading, strobe, and scene programming for creative lighting effects.

4. IP67 Waterproof & Dustproof Design

  • Built with IP67-rated aluminum housing and tempered glass lens.

  • Fully sealed to withstand rain, dust, and outdoor environments.

5. Modular & Customizable Design

  • Available in various lengths (e.g., 500mm / 1000mm).

  • Beam angles and lens covers can be customized for different project requirements.

  • Housing color, mounting brackets, and wiring configurations are adjustable per request.

6. Durable and Weather-Resistant Construction

  • Die-cast aluminum alloy body LED Linear Wall Washer Lights with high thermal conductivity.

  • Anti-corrosion treatment suitable for coastal, desert, or high-humidity climates.

  • Working temperature: -40°C to +55°C.

7. Multiple Color Temperatures

  • CCT options range from 2000K–6500K for white lights.

  • RGB/RGBW versions support millions of color combinations.

8. Wide Voltage Input & Safety Protection

  • Supports DC24V / AC100–277V (or custom input).

  • Built-in protection: over-voltage, over-current, and short-circuit safeguards.

9. Easy Installation

  • Equipped with adjustable mounting brackets for precise beam direction.

  • Suitable for wall, floor, or ground-mounted installations.

10. Long Lifespan & Warranty

  • Rated lifespan of 50,000+ hours.

  • Comes with 3–5 year warranty, depending on configuration.
